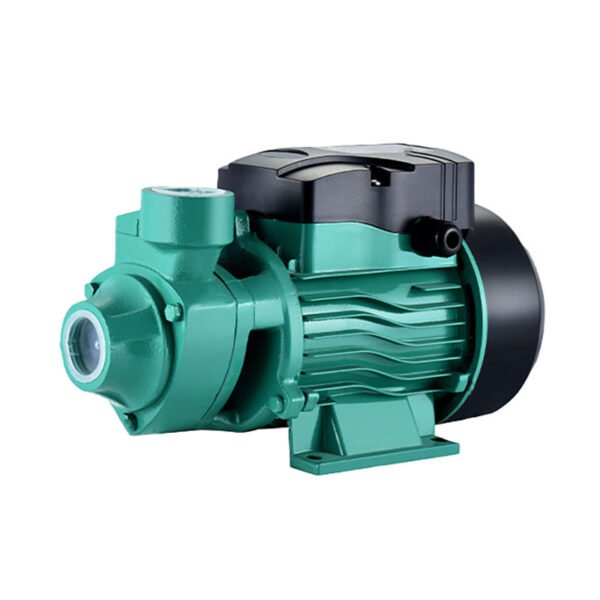

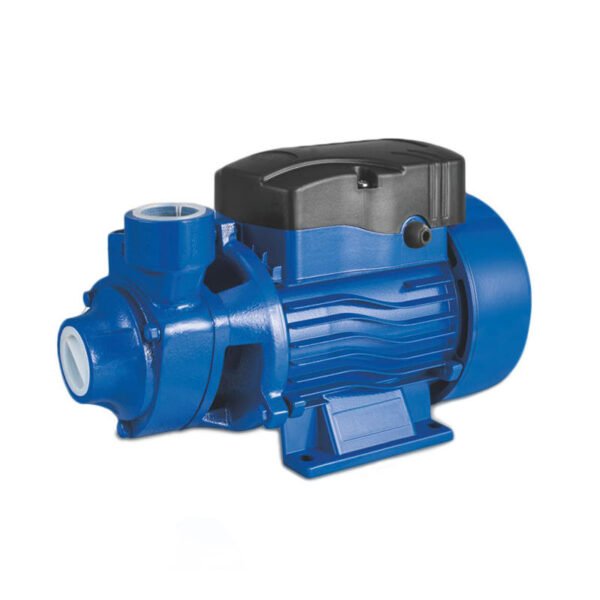

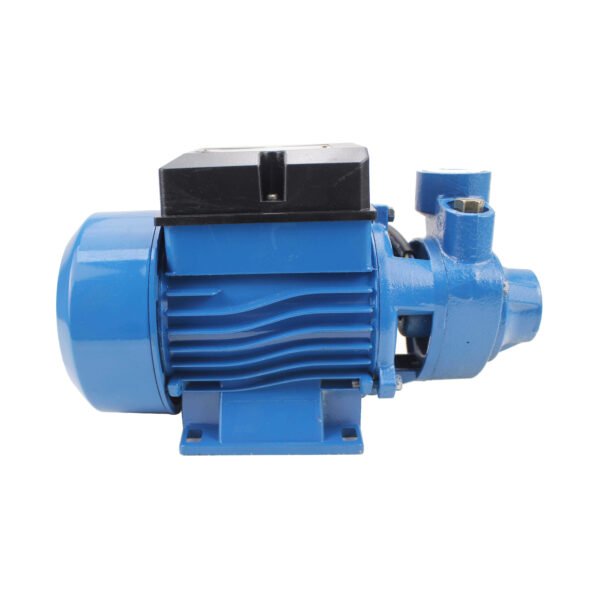

QB Series High Quality Vortex Surface Water Pump 0.5hp Pump Booster Irrigation Pump for Water Home

Power:0.37kw to 1.5kw

Max head: 40m to 90m                                        Construction

Max Flow:2.1 m³/h to 4.8m³/h                        Pump Body: Cast iron.

Size: 1″x1″                                                         Impeller: Brass

Motor Shaft: 304 stainless steel shaft

Application Limits                                      Mechanical Seal: Ceramic-graphite.

Manometric suction lift up to 8 m                  Electric Motor: Single-phase 230V-50Hz, copper

Liquid temperature up to + 40°C                    Winding with built-in thermal overload protector.

Ambient temperature up to + 40 °C                Insulation: Class F.      Protection: IP 44.
